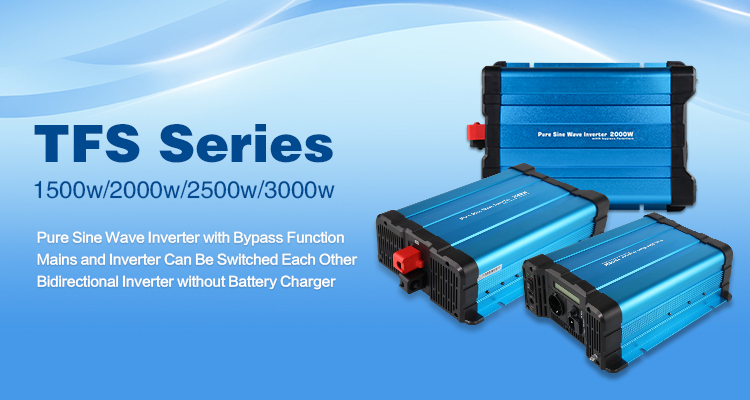

1500W/ 2000W/ 2500W/ 3000W Pure Sine Wave Power Inverter With Bypass Function

Short Description:

Power inverter is a kind of products which change the DC electricity to AC electricity. It has been widely used in cars, steamboats, mobile offering post and telecommunications, public security, emergency, off grid solar system, household appliances and other field.

Send Email to Us

Product Detail

Parameters

Product Tags

Features

• High frequency transformer design is capable of driving high reactive
• Pure Sine Wave output(THD<3%)
• Power ON/OFF remote control(optional)
• Input & output fully isolation
• Input Protection: Reverse Polarity(Fuse)/Under Voltage/Over Voltage
• Output Protection: Short Circuit/ Overload/ Over Temperature/ Earth Fault/ Soft Start
• Germany technology, Made in china
• 100% real power, High surge power, 2 year warranty
• E8/CE approved

More Details

Previous: Mobile App/Pc Software Control 1500W 2000W 3000W Pure Sine Wave Power Inverter

Next: 3.5kw 5.5kw 6.2kw 220v/230vac Output Mppt 60vdc To 500vdc Pv Input Hybrid Solar Inverter

Model	TFS1500	TFS2000	TFS2500	TFS3000
AC Voltage	100-120VAC/ 220-240VAC	100-120VAC/ 220-240VAC	100-120VAC/ 220-240VAC	100-120VAC/ 220-240VAC
Rated Power	1500w	2000w	2500w	3000W
Surge Power	3000W (20ms)	4000W (20ms)	5000W (20ms)	6000W (20ms)
Frequency	50/60Hz土0.05%	50/60Hz土0.05%	50/60Hz土0.05%	50/60Hz土0.05%
Standard Receptacles	USA/ British/ Franch/ Schuko IUK/ Australia/ Universal etc.optional	USA/ British/ Franch/ Schuko IUK/ Australia/ Universal etc.optional	USA/ British/ Franch/ Schuko IUK/ Australia/ Universal etc.optional	USA/ British/ Franch/ Schuko IUK/ Australia/ Universal etc.optional
LED Indicator	Green for power on, red for faulty status	Green for power on, red for faulty status	Green for power on, red for faulty status	Green for power on, red for faulty status
USB port	5V2.1A	5V2.1A	5V2.1A	5V2.1A
LCD display( optional)	voltage, power, protection status	voltage, power, protection status	voltage, power, protection status	voltage, power, protection status
Remote control function	default	default	default	default
Remote controller	CR80/ CRD80/ CRW80/ CRW88 optional	CR80/ CRD80/ CRW80/ CRW88 optional	CR80/ CRD80/ CRW80/ CRW88 optional	CR80/ CRD80/ CRW80/ CRW88 optional
Efficiency(Typ.)	Shut off o/p when the load has electrical leakage	Shut off o/p when the load has electrical leakage	Shut off o/p when the load has electrical leakage	Shut off o/p when the load has electrical leakage
Over Temperature	Shut down output voltage, recover automatically after temperature goes down	Shut down output voltage, recover automatically after temperature goes down	Shut down output voltage, recover automatically after temperature goes down	Shut down output voltage, recover automatically after temperature goes down
Output Short	by fuse open	by fuse open	by fuse open	by fuse open
DC Input Reverse Polarity	By fuse open	By fuse open	By fuse open	By fuse open
Earth Fault	Shut off olp when the load has electrical leakage	Shut off olp when the load has electrical leakage	Shut off olp when the load has electrical leakage	Shut off olp when the load has electrical leakage
Soft Start	Yes, 3-5 Seconds	Yes, 3-5 Seconds	Yes, 3-5 Seconds	Yes, 3-5 Seconds
Transfer time	15ms	15ms	15ms	15ms
Dimension(L×W×H)	325.2 × 281.3 × 112.7 mm	325.2 × 281.3 × 112.7 mm	442.2 × 261.3 × 112.7 mm	442.2 × 261.3 × 112.7 mm
Packing	5.2kg; 2pcs/11.1kg	5.2kg; 2pcs/11.1kg	8kg; 2pcs/17kg	8kg; 2pcs/17kg
